同步帶輪型號

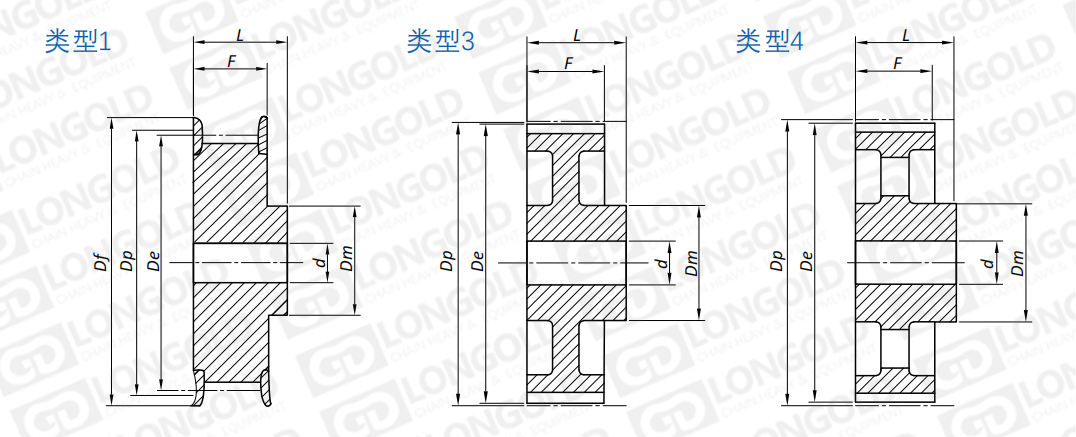

類型

齒數(shù)

節(jié)距圓直徑

外圓直徑

擋圈直徑

輪轂直徑

齒寬

總寬

孔徑

De

Dp

Df

Dm

F

L

d(成品孔徑)

d(最大孔徑)

inch

inch

inch

inch

inch

inch

inch

inch

XXH40018T-F

1

18

7.042

7.162

7 7/8

5  9/16

4 3/4

5  9/16

1 1/8

3 1/2

XXH40019T-F

1

19

7.440

7.560

8 1/8

5  9/16

4 3/4

5  9/16

1 1/8

3 1/2

XXH40020T-F

1

20

7.838

7.958

8 11/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40021T-F

1

21

8.236

8.356

8 15/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40022T-F

1

22

8.633

8.753

9 1/2

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40024T

5

24

9.429

9.549

10  5/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40026T

5

26

10.225

10.345

11  1/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40027T

5

27

10.623

10.743

11  7/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40030T

5

30

11.817

11.937

12 11/16

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40040T

5C

40

15.795

15.915

16 5/8

6

4 3/4

5  9/16

1 1/8

3 7/8

XXH40048T

4

48

18.979

19.099

6 15/16

4 3/4

5  9/16

1 1/8

4 1/2

XXH40060T

4

60

23.753

23.873

6 15/16

4 3/4

5  9/16

1 1/4

4 1/2

XXH40072T

4

72

28.528

28.648

6 15/16

4 3/4

5  9/16

1 1/4

4 1/2

XXH40090T

4

90

35.690

35.810

6 15/16

4 3/4

5  9/16

1 1/4

4 1/2
