隆德鏈號

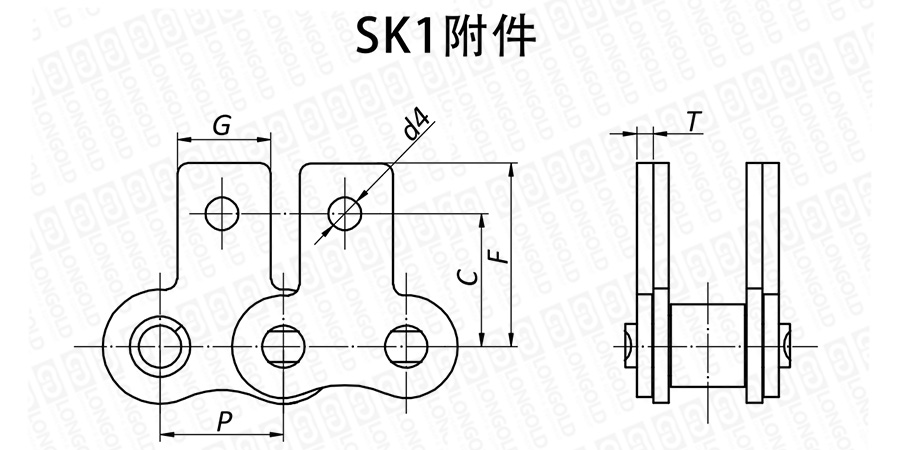

附件尺寸

破斷載荷

PDF圖紙

DXF圖紙

P

G

C

F

T

d4

mm

mm

mm

mm

mm

mm

*LD35-SS-B

9.525

7.90

9.50

14.55

1.30

3.40

請咨詢

請咨詢

請咨詢

LD40-SS

12.70

9.50

12.70

19.05

1.50

3.40

LD50-SS

15.875

12.70

15.90

25.25

2.03

5.50

LD60-SS

19.05

15.90

18.30

29.33

2.42

5.50

LD80-SS

25.40

19.10

24.60

34.70

3.25

6.80

LD100-SS

31.75

25.40

31.80

43.30

4.00

9.20

LD120-SS

38.10

28.60

36.50

51.60

4.80

9.80

LD140-SS

44.45

34.90

44.50

62.00

5.60

11.40

LD160-SS

50.80

38.10

50.80

69.85

6.40

13.10

#LDC06B-SS

9.53

8.00

9.52

13.50

1.30

3.50

LD08B-SS

12.70

9.50

13.35

18.90

1.60

4.50

LD10B-SS

15.88

14.30

16.50

22.95

1.70

5.30

LD12B-SS

19.05

16.00

21.45

28.60

1.85

6.40

LD16B-SS

25.40

19.10

23.15

34.00

3.10

6.40

LD20B-SS

31.75

35.00

30.50

45.70

3.50

9.00

LD24B-SS

38.10

30.00

36.00

61.50

4.80

10.50
