導軌型號

配用鏈條型號

B

H

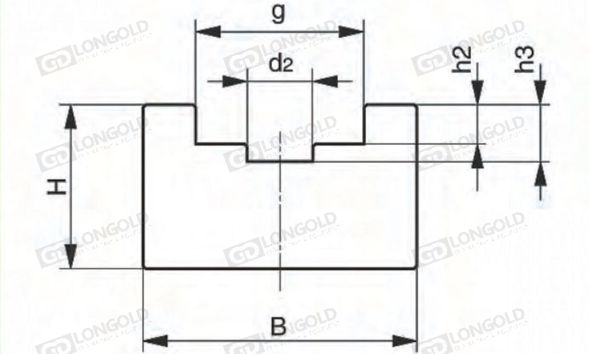

d2

g

h2

h3

PDF圖紙

DXF圖紙

mm

mm

mm

mm

mm

mm

LD06B-1-S-U

06B-1

20

15

4

9.4

2.8

4.2

請咨詢

請咨詢

LD083-1-S-U

083-1

20

15

5

10.8

2.3

3.8

LD08B-1-S-U

08B-1

25

15

5

12.8

3.5

5.0

LD085-1-S-U

085-1

20

15

5

11.8

3.2

4.7

LD10B-1-S-U

10B-1

25

15

6

15.4

3.6

5.0

LD12B-1-S-U

12B-1

25

20

7

17.0

3.9

5.7

LD16B-1-S-U

16B-1

33

25

10

24.0

8.4

10.6

LD20B-1-S-U

20B-1

55

25

11

28.0

10.0

12.2

LD24B-1-S-U

24B-1

60

30

16

36.6

13.0

16.0

LD28B-1-S-U

28B-1

65

30

17

40.0

16.0

18.0

LD32B-1-S-U

32B-1

70

30

20

44.6

16.0

20.0

LD25-1-S-U

25-1

15

10

2.9

6.6

1.7

3.1

LD35-1-S-U

35-1

20

15

4.5

10.0

2.7

4.5

LD40-1-S-U

40-1

20

15

5

13.2

3.1

5.2

LD50-1-S-U

50-1

25

15

6.4

16.5

4.2

6.5

LD60-1-S-U

60-1

30

20

7.4

19.8

5.0

7.5

LD80-1-S-U

80-1

35

20

9.9

26.5

6.3

9.3

LD100-1-S-U

100-1

40

25

11.9

33.1

8.3

11.7

LD120-1-S-U

120-1

55

25

13.9

39.8

9.8

13.4

LD140-1-S-U

140-1

60

30

15.9

46.4

11.5

15.6

LD160-1-S-U

160-1

65

35

17.8

53.0

13.5

17.8
